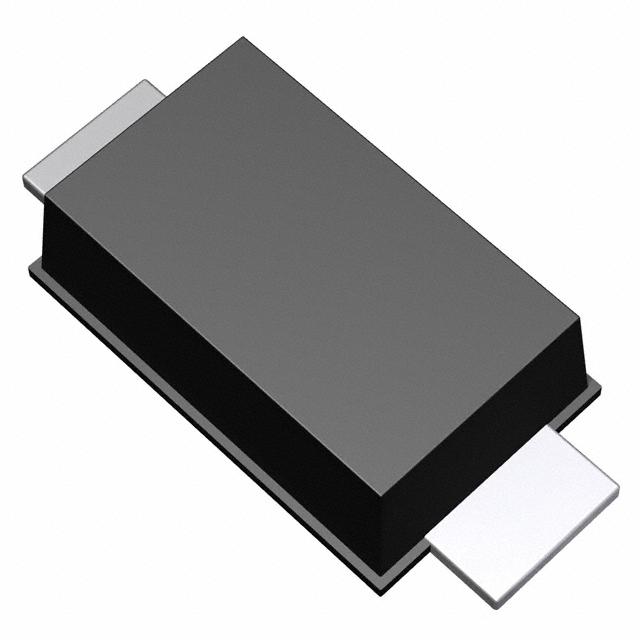

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RF081MM2STR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123F
Forward Voltage	950mV @800mA
Reverse recovery time	25 ns
Forward Current	1000 mA
Max Forward Surge Current (Ifsm)	20 A
Maximum Forward Voltage (Max)	980 mV
Forward Current (Max)	1000 mA
Operating Temperature (Max)	150 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS-conform
Lead-Free Status
ECCN Code	EAR99
