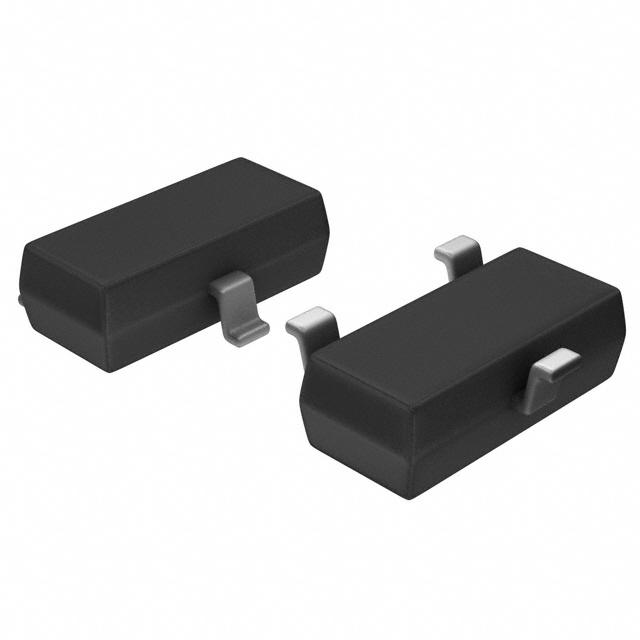

- N-Channel 30V 500mA (Ta) 200mW (Ta) Surface Mount SMT3
RJK005N03T146 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 500 mA |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 650 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 0.2 W |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30.0 V |
| Continuous Drain Current (Ids) | 500 mA |
| Rise Time | 11 ns |
| Input Capacitance (Ciss) | 60pF @10V(Vds) |
| Input Power (Max) | 200 mW |
| Fall Time | 31 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200mW (Ta) |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.1 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not For New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
