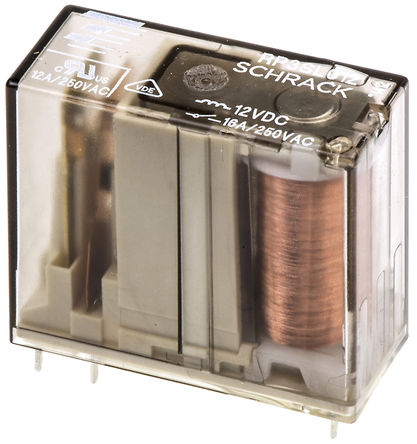

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The RP3SL012 is a 1-pole general-purpose PCB Low Power Relay with DC coil, RP3SL series. 1 form-A (1NO) contact configuration, AgSnO2 contact. 16A, flux-proof. 4kV/8mm coil-contact. For high inrush currents up to 120A.
- RT II Environmental protection rating
RP3SL012 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Current Rating | 16 A |
| Contacts Type | SPST-NO |
| Power Consumption | 500 mW |
| Contact Current Rating | 16 A |
| Coil Voltage | 12 VDC |
| Coil Current | 44.4 mA |
| Coil Power (DC) | 500 mW |
| Coil Resistance | 270 Ω |
| Carry Current | 16.0 A |
| Coil Voltage (DC) | 12 V |
| Input Power (Max) | 4 KVA |
| Switching Current (Max) | 25 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 12 VDC |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 25.5 mm |
| Size-Height | 25.5 mm |
| Contact Material | Silver Tin Oxide |
| Weight | 18.0 g |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
