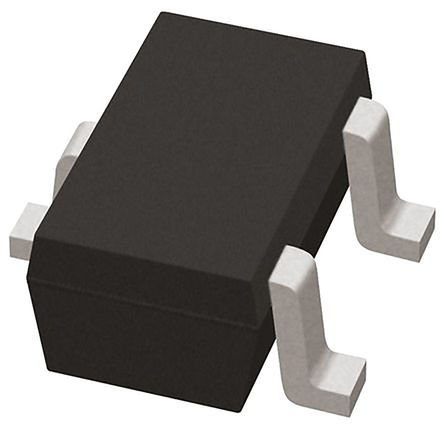

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Clamp Ipp Tvs Diode Surface Mount UMD3
RSB16F2T106 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-323 |
| Operating Voltage | 27.6 V |
| Capacitance | 30 pF |
| Number of Channels | 2 Channel |
| Number of Positions | 3 Position |
| Power Dissipation | 200 mW |
| Test Current | 1 mA |
| Zener Voltage | 16 V |
| Peak Pulse Power | 0.2 W |
| Min Breakdown Voltage | 14.4 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Length | 2.1 mm |
| Size-Width | 2 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
