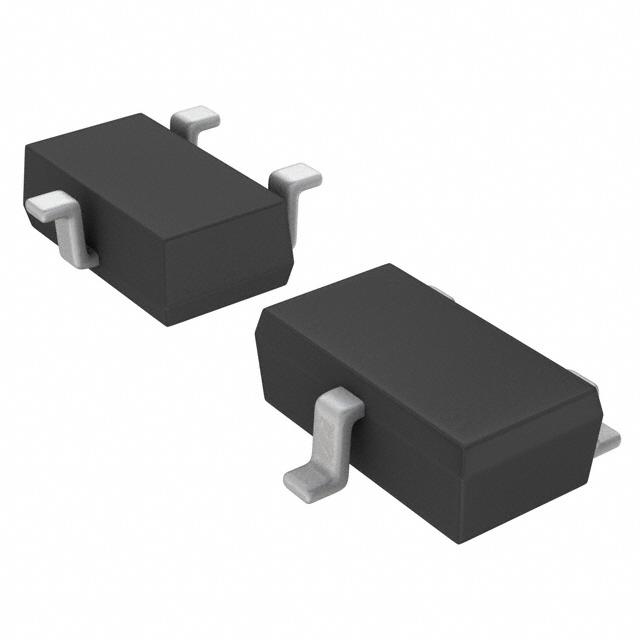

Image is for your reference only,please check specifications for details

Updated at 29/06/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RSR020P03TL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-346-3
Voltage Rating (DC)	-30.0 V
Current Rating	-2.00 A
Drain to Source Resistance (on) (Rds)	150 mΩ
Polarity	P-Channel
Power Dissipation	1 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	2.00 A
Rise Time	10 ns
Input Capacitance (Ciss)	370pF @10V(Vds)
Input Power (Max)	1 W
Fall Time	11 ns
Power Dissipation (Max)	1W (Ta)
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.85 mm
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
