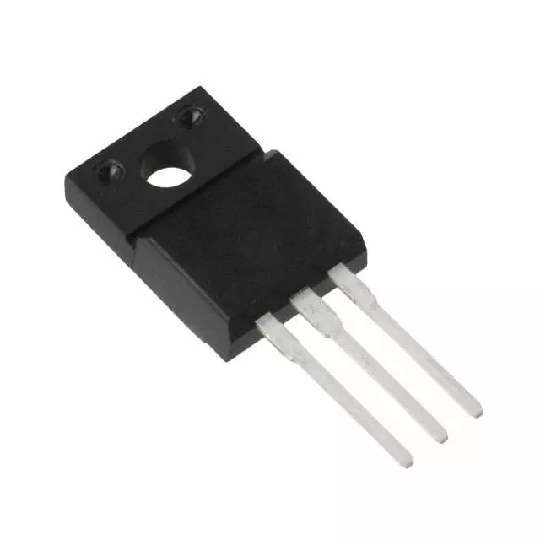

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Common Cathode Schottky 30V 5A Through Hole TO-220-3 Full Pack

Show

RSX1001T3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	30.0 V
Current Rating	10.0 A
Forward Voltage	450mV @5A
Forward Current	10 A
Maximum Forward Voltage (Max)	450mV @5A
Junction Temperature	150℃ (Max)
	Show
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
