Description

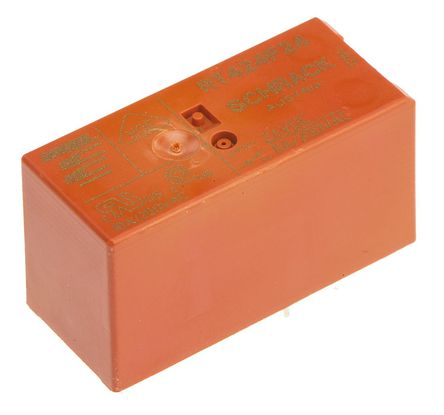

- The RT424F24 is a 2-pole general-purpose Power PCB Relay with DC coil, RT2 bistable series. 2 form-C (2CO) contact configuration, AgNi 90/10 contact. 8A, 5mm pinning, flux-proof. Polarized bistable version with 2 coils. 5kV/10mm coil-contact. Reinforced insulation.
- Bi-stable 2 coils
- RT II Environmental protection rating
RT424F24 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | - |
| Current Rating | 16 A |
| Insulation Resistance | 10.0 GΩ |
| Input Voltage (DC) | 24.0 V |
| Contacts Type | DPDT |
| voltage rating | 16.8 V |
| Contact Current Rating | 8 A |
| Coil Voltage | 24 VDC |
| Coil Current | 16.7 mA |
| Coil Power (DC) | 650 mW |
| Coil Resistance | 886 Ω |
| Carry Current | 8.00 A |
| Coil Voltage (DC) | 24 V |
| Coil Power | 650 mW |
| Input Power (Max) | 2 KVA |
| Switching Current (Max) | 8 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 12.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Nickel |
| Weight | 10.0 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
