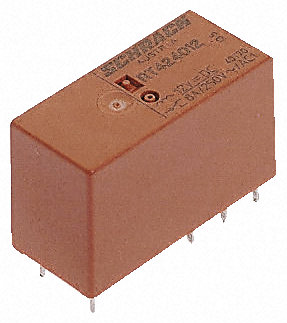

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 1 pole 12A/16A, 1 form C (CO) or 1 form A (NO) contact
- DC or AC coil
- 5kV/10mm coil-contact, reinforced insulation
- Ambient temperature 85°C (DC coil)
- WG version: product in accordance to IEC 60335-1
- Reflow version: for THR (Through-Hole Reflow) soldering process
RTD14005 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DIP |
| Current Rating | 16 A |
| Input Voltage (DC) | 5.00 V |
| Contacts Type | SPDT |
| Power Consumption | 400 mW |
| voltage rating | 500 mV |
| Contact Current Rating | 16.0 A |
| Coil Voltage | 5 VDC |
| Coil Current | 80.6 mA |
| Coil Power (DC) | 400 mW |
| Coil Resistance | 62 Ω |
| Coil Voltage (DC) | 5 V |
| Coil Power | 400 mW |
| Switching Current (Max) | 16 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 12.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
