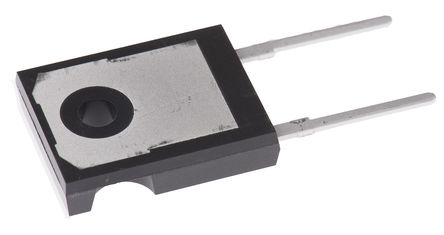

Image is for your reference only,please check specifications for details

RURG8060 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC8161021
Category:
TVS Diode
Package:
TO-247-2
Datasheet:
Datasheet 3D Model
Description:
RURG8060 Series 600V 80A 85ns Through Hole Ultrafast Diode - TO-247-2
Stock Locations:
Availability:
2,519 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RURG8060 is an Ultrafast Diode with low forward voltage drop. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications.
Avalanche energy rated
600VDC Blocking voltage
180W Maximum power dissipation
0.83°C/W Junction to case thermal resistance

Show

RURG8060 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	600 V
Current Rating	80 A
Output Current	80 A
Forward Voltage	1.6 V
Polarity	Standard
Power Dissipation	180 W
Thermal Resistance	0.83℃/W (RθJC)
Reverse recovery time	85 ns
Forward Current	80 A
Max Forward Surge Current (Ifsm)	800 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	80 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	15.8 mm
Size-Width	4.82 mm
Size-Height	20.8 mm
Weight	2.871239892 kg
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
