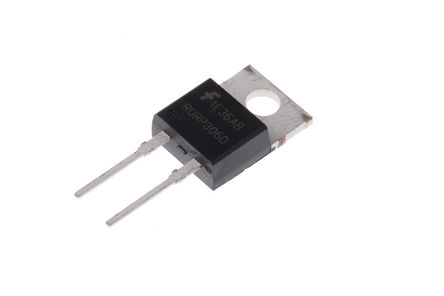

Image is for your reference only,please check specifications for details

RURP3060 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC9184153
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR RURP3060 Fast / Ultrafast Power Diode, 600V, 30A, Single, 1.5V, 55ns, 325A
Stock Locations:
Availability:
1,505 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.87

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RURP3060 is an Ultrafast Diode with low forward voltage drop. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications.
Avalanche energy rated
600VDC Blocking voltage
125W Maximum power dissipation
1.5°C/W Junction to case thermal resistance

Show

RURP3060 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	600 V
Current Rating	30.0 A
Output Current	≤30.0 A
Forward Voltage	1.5 V
Polarity	Standard
Thermal Resistance	1.2℃/W (RθJC)
Reverse recovery time	60 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	325 A
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	16.51 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
