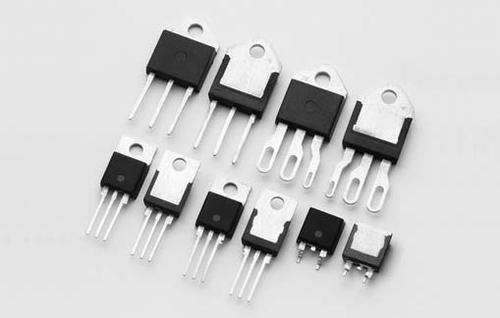

Image is for your reference only,please check specifications for details
- S6055NRP - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC22482672
-
Category:SCR Diode, SCR
-
Package:TO-263-3
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE S6055NRP Thyristor, 600V, 40mA, 35A, 55A, TO-263AA, 3Pins
-
Stock Locations:
-
Availability:2,004 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.6
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This scr S6055NRP thyristor manufactured from Littelfuse acts as a bistable switch and will continue to operate when a voltage is applied to it. This device has a surge current rating of 650 A. Its repetitive peak forward blocking voltage is 600 V, while its repetitive peak reverse voltage is 600 V. This SCR thyristor has an operating temperature range of -40 °C to 125 °C.
S6055NRP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Number of Contacts | 2 Contact |
| Voltage Rating (DC) | 600 V |
| Current Rating | 35.0 A |
| Number of Positions | 3 Position |
| Holding Current | 60.0 mA |
| Holding Current (Max) | 60 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 10.67 mm |
| Size-Width | 9.4 mm |
| Size-Height | 4.78 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape, Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
