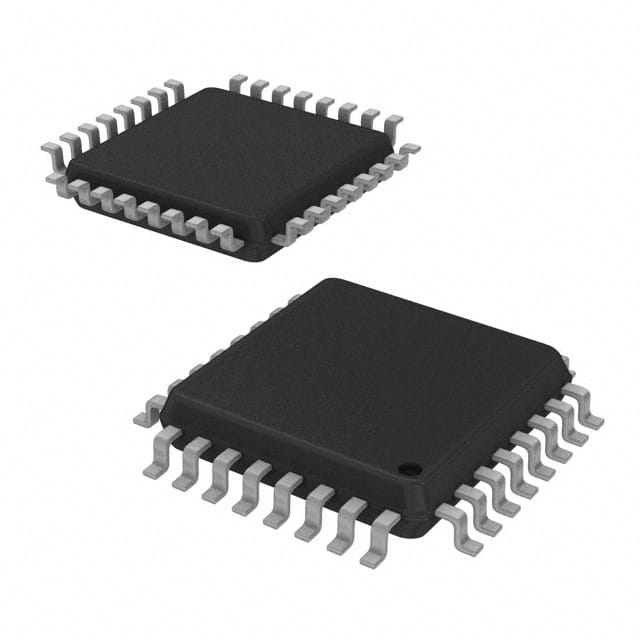

Image is for your reference only,please check specifications for details

S9S12ZVL32F0MLCR - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC144365203
Category:
Microcontroller, MCU IC
Package:
LQFP-32
Datasheet:
Datasheet 3D Model
Description:
MagniV 16Bit MCU, S12Z core, 32KB Flash, 25MHz, -40/+125℃, Automotive Qualified, QFP 32
Stock Locations:
Availability:
225 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The S12ZVL platform, part of the S12 MagniV mixed-signal MCU product line, offers a low-cost, highly integrated solution for space-constrained automotive LIN nodes. With memory sizes from 8-128K flash, the family provides scalability for platform standardization.
The S12ZVL integrates a sophisticated S12Z core with a 12 V to 5 V voltage regulator and a LIN physical layer transceiver for automotive and industrial applications such as sensor interfaces, actuators, switch panels or ambient lighting.
MoreLess
## Features
* S12Z core - 32 MHz bus speed
* Up to 128 KB Flash (with ECC)
* Up to 2KB EEPROM (with ECC)
* Up to 8 KB RAM (with ECC)
* Analog comparator and DAC
* PGA
* 12V Vreg to supply device + ext comp- 70mA total (170mA with ext. Ballast)
* LIN physical layer
* On-chip RC-oscillator trimmed to 1.3% accuracy, no ext xtal required on LIN
* Ultra-Reliable MCUs
## Features
