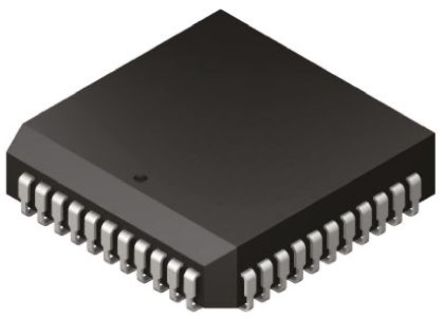

Image is for your reference only,please check specifications for details

SC26C92C1A - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC146820713
Category:
UART Chip, UART Interface IC
Package:
PLCC
Datasheet:
Datasheet 3D Model
Description:
2Channel(S) 1Mbps SERIAL COMM CONTROLLER PLCC44 2Channel(S) 1Mbps SERIAL COMM CONTROLLER PLCC44 2Channel(S) 1Mbps ...
Stock Locations:
Availability:
1,269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SC26C92C1A is a Dual Universal Asynchronous Receiver/Transmitter provides two full-duplex asynchronous receiver/transmitter channels. It interfaces directly with microprocessors and may be used in a polled or interrupt driven system and provides modem and DMA interface. The operating mode and data format of each channel can be programmed independently. Additionally, each receiver and transmitter can select its operating speed as one of 27 fixed baud rates, a 16X clock derived from a programmable counter/timer or an external 1X or 16X clock. The baud rate generator and counter/timer can operate directly from a crystal or from external clock inputs. The ability to independently program the operating speed of the receiver and transmitter make the DUART particularly attractive for dual-speed channel applications such as clustered terminal systems.
16-bit Programmable counter/timer
Parity, framing and overrun error detection
False start bit detection
Line break detection and generation
Multi-function 7-bit input port
Multi-function 8-bit output port
Automatic wake-up mode for multidrop applications
Start-end break interrupt/status
Detects break which originates in the middle of a character
On-chip crystal oscillator
Power down mode
Receiver timeout mode

Show

SC26C92C1A Specifications
