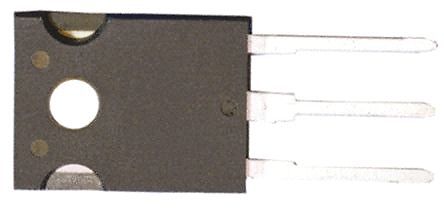

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SCS220KE2C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.6V @10A
Power Dissipation	280 W
Reverse recovery time	0 ns
Forward Current	20 A
Max Forward Surge Current (Ifsm)	44 A
Maximum Forward Voltage (Max)	1.9 V
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	280000 mW
	Show
Size-Length	15.9 mm
Size-Width	5.03 mm
Size-Height	20.95 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
