SCS220KGC Rohm - Schottky Diodes - ManyChip Electronics

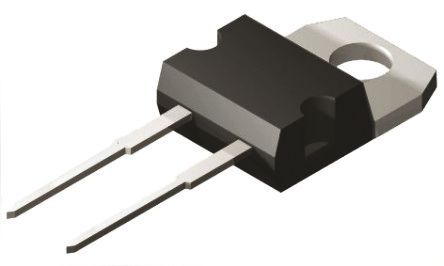

Image is for your reference only,please check specifications for details

SCS220KGC - Rohm
Manufacturer:
Rohm
ManyChip's Part#:
MC44345596
Category:
Schottky Diodes
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
ROHM SCS220KGC – диод Шоттки из силиката кремния, тип барьерного диода, серия SCS22, односторонний, напряжение 1,2 кВ, пропускная способность 20 А, сопротивление тока 65 Ом, размер корпуса TO-220AC.
Stock Locations:
Availability:
316 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.3

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Серия SCS220KG – диод Шоттки из силиката кремния с фланцевным монтажом, напряжение 1200 В, пропускная способность 20 А, размер корпуса TO-220AC.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.6V @20A
Power Dissipation	210 W
Thermal Resistance	0.71℃/W (RθJC)
Reverse recovery time	0 ns
Forward Current	20 A
Max Forward Surge Current (Ifsm)	310 A
Maximum Forward Voltage (Max)	1.9 V
Forward Current (Max)	20 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	9.8 mm
Size-Width	4.45 mm
Size-Height	15.37 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
