Description

This silicon carbide Power MOSFET is produced exploiting the advanced, innovative properties of wide bandgap materials. This results in unsurpassed on-resistance per unit area and very good switching performance almost independent of temperature. The outstanding thermal properties of the SiC material, combined with the device’s housing in the proprietary HiP247™ package, allows designers to use an industry-standard outline with significantly improved thermal capability. These features render the device perfectly suitable for high-efficiency and high power density applications.
**Key Features**
Very tight variation of on-resistance vs. temperature
Slight variation of switching losses vs. temperature
Very high operating temperature capability (200 °C)
Very fast and robust intrinsic body diode
Low capacitance
Easy to drive

Show

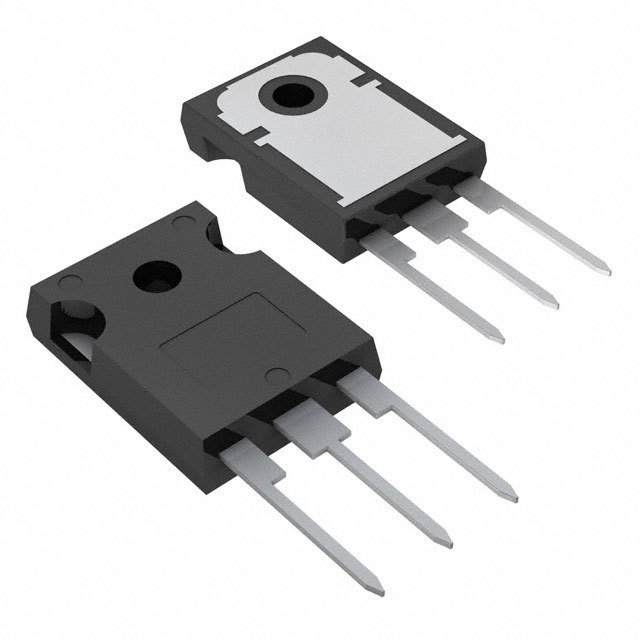

SCT20N120 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	215 mΩ
Power Dissipation	175 W
Threshold Voltage	2 V
Input Capacitance	650 pF
Drain to Source Voltage (Vds)	1200 V
Breakdown Voltage (Drain to Source)	1.2 kV
Rise Time	16 ns
Input Capacitance (Ciss)	650pF @400V(Vds)
Fall Time	17 ns
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	175W (Tc)
	Show
Operating Temperature	-55℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
