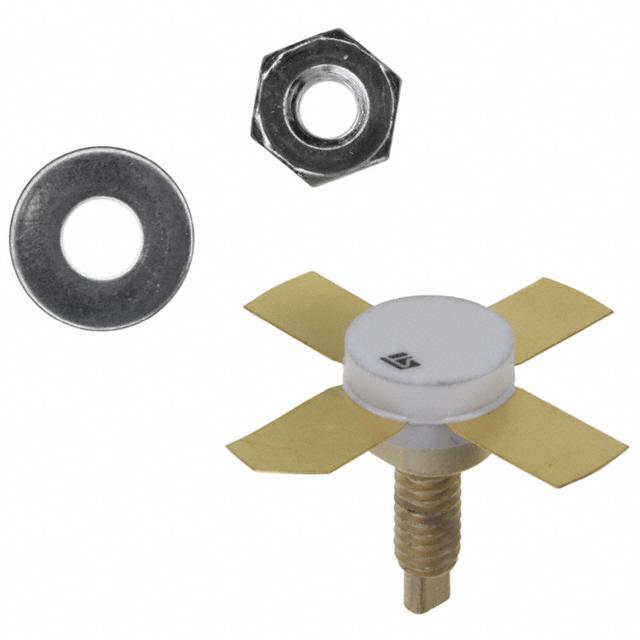

Image is for your reference only,please check specifications for details
Updated at 23/06/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **HF to 2000 MHz Class AB Common Source - PowerSO-10RF**
- **VHF / UHF radio and digital cellular BTS applications**
- **HF to 2000MHz class AB common source - PowerFLAT**
- VHF / UHF radio applications
- **HF to 2000MHz class AB common cource - ceramic packages**
- **UHF TV and digital cellular BTS applications**
- **2 to 400MHz class AB common source N channel MOSFETs**
- HF / SSB, FM / VHF broadband applications
- **2 to 30MHz class AB linear, common emitter, HF / SSB**
SD1275 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis |
| Number of Pins | 4 Pin |
| Case/Package | M-135 |
| Voltage Rating (DC) | 36.0 V |
| Current Rating | 8.00 A |
| Power Dissipation | 70 W |
| Breakdown Voltage (Collector to Emitter) | 16 V |
| Gain | 9 dB |
| hFE Min | 20 @250mA, 5V |
| hFE Max | 20 @250mA, 5V |
| Input Power (Max) | 70 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 9.78 mm |
| Size-Width | 9.78 mm |
| Size-Height | 19.05 mm |
| Operating Temperature | 200℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
