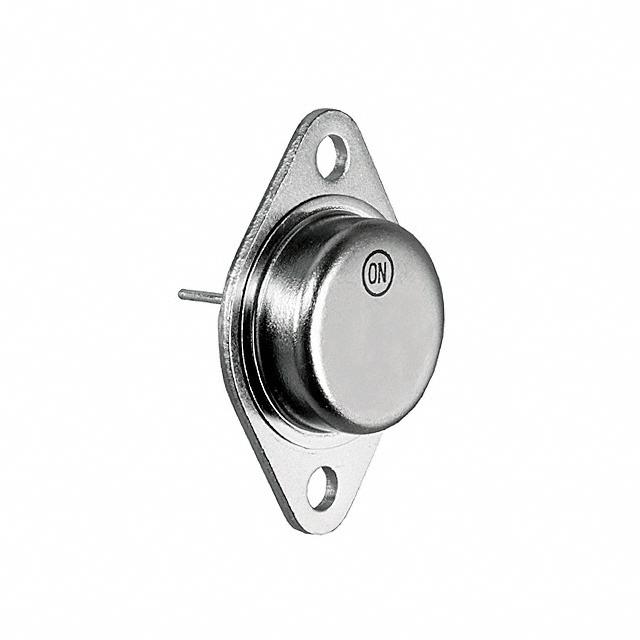

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Darlington Bipolar Power Transistor is designed for use as general purpose amplifiers, low frequency switching and motor control applications. The MJ11021(PNP) and MJ11022 (NPN) are complementary devices.
- Features
- ---
- |
- Pb-Free Packages are Available
MJ11021 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-3 |
| Voltage Rating (DC) | -250 V |
| Current Rating | -15.0 A |
| Polarity | PNP |
| Power Dissipation | 175000 mW |
| Breakdown Voltage (Collector to Emitter) | 250 V |
| Continuous Collector Current | 15A |
| hFE Min | 400 @10A, 5V |
| hFE Max | 15000 |
| Input Power (Max) | 175 W |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Gain Bandwidth | 3MHz (Min) |
| Power Dissipation (Max) | 175000 mW |
| Show | |
| Size-Height | 8.51 mm |
| Operating Temperature | -65℃ ~ 200℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| Minimum Packing Quantity | 100 |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
