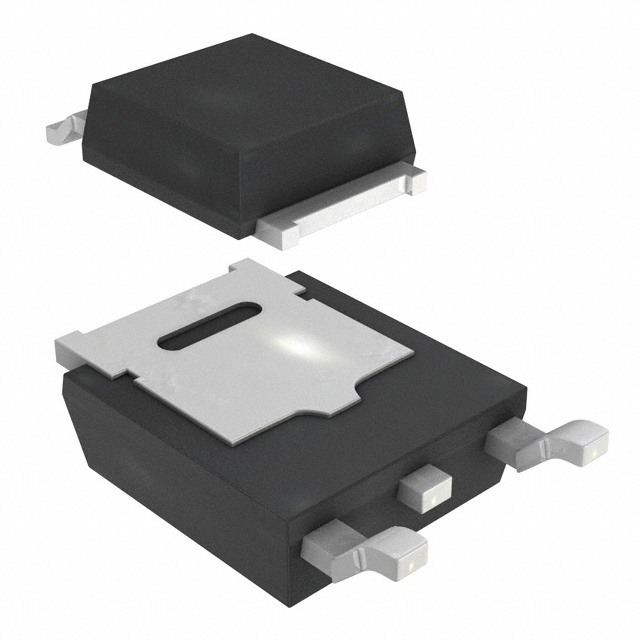

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFR014 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252
Voltage Rating (DC)	60.0 V
Current Rating	7.70 A
Drain to Source Resistance (on) (Rds)	200 mΩ (max)
Polarity	N-Channel
Power Dissipation	25.0 W
Breakdown Voltage (Drain to Source)	60.0V (min)
Continuous Drain Current (Ids)	7.70 A
Rise Time	50.0 ns
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
