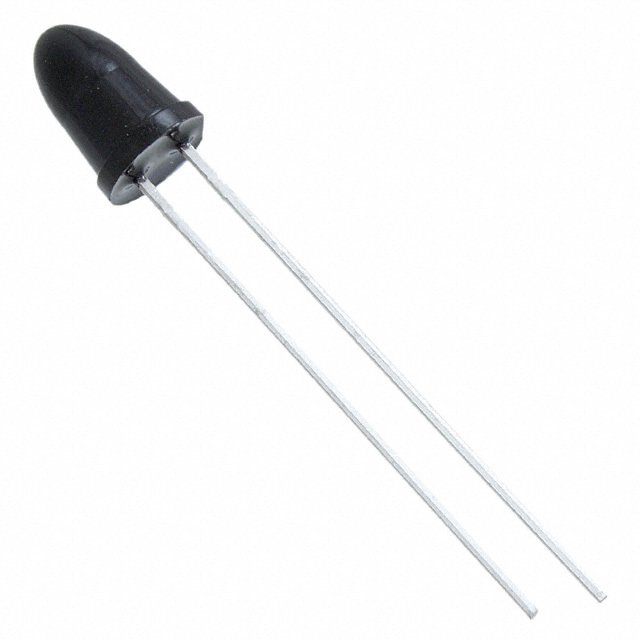

Image is for your reference only,please check specifications for details
- SFH 4545 - Osram Opto
-
Manufacturer:Osram Opto
-
ManyChip's Part#:MC2997154
-
Category:Light Source, Emitter
-
Package:T-1
-
Datasheet:Datasheet 3D Model
-
Description:IR transmitter; 5mm; 950nm; black; 550mW; 5°; THT; 100mA; 1.5÷1.8V
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Infrared (IR) Emitter 950nm 1.5V 100mA 550mW/sr @ 100mA 10° Radial
SFH 4545 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-1 |
| Power Rating | 180 mW |
| Forward Voltage | 1.5 V |
| Wavelength | 950 nm |
| Viewing Angle | 10° |
| Peak Wavelength | 950 nm |
| Power Dissipation | 180 W |
| Rise Time | 12 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 2.3 V |
| Forward Current (Max) | 100 mA |
| Fall Time | 12 ns |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 180 mW |
| Show | |
| Size-Length | 5.7 mm |
| Size-Width | 5 mm |
| Size-Height | 7 mm |
| Operating Temperature | -40℃ ~ 100℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
