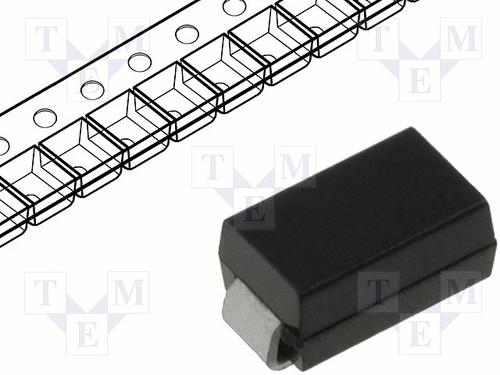

Image is for your reference only,please check specifications for details
- SMAJ350CA - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC1941430
-
Category:TVS Diode
-
Package:DO-214AC-2
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE SMAJ350CA TVS Diode, SMAJ Series, Bidirectional, 350V, 567V, DO-214AA, 2Pins
-
Stock Locations:
-
Availability:203 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.16
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SMAJ350CA is a surface mount bidirectional Transient Voltage Suppression (TVS) Diode with matte tin-plated leads and a molded plastic case. The SMAJ series TVS is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. The TVS device is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom.
- Glass passivated junction
- Excellent clamping capability
- Built-in strain relief
- Low inductance
- Typical failure mode is short from over-specified voltage or current
- Halogen-free
- 1mA Test current
- 1µA at 350V Maximum reverse leakage current
SMAJ350CA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC-2 |
| Voltage Rating (DC) | 350 V |
| Operating Voltage | 350 V |
| Power Rating | 400 W |
| Breakdown Voltage | 432 V |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Power Dissipation | 400 W |
| Clamping Voltage | 567 V |
| Max Breakdown Voltage | 432 V |
| Peak Pulse Power | 400 W |
| Min Breakdown Voltage | 391 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 5.28 mm |
| Size-Width | 2.79 mm |
| Size-Height | 2.29 mm |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
