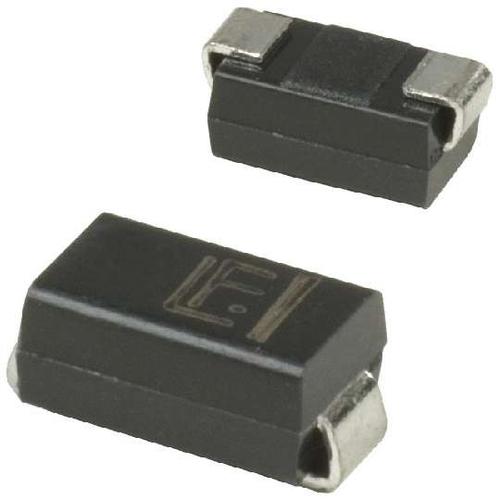

Image is for your reference only,please check specifications for details

SMAJ75A - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC10770630
Category:
TVS Diode
Package:
DO-214AC-2
Datasheet:
Datasheet 3D Model
Description:
Trans Voltage Suppressor Diode, 400W, 75V V(RWM), Unidirectional, 1Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMA, 2Pin
Stock Locations:
Availability:
2,500 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SMAJ75A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC-2
Voltage Rating (DC)	75.0 V
Operating Voltage	75 V
Power Rating	400 W
Breakdown Voltage	87.7 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	400 W
Clamping Voltage	121 V
Test Current	1 mA
Max Breakdown Voltage	92.1 V
Peak Pulse Power	400 W
Min Breakdown Voltage	83.3 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Length	4.5 mm
Size-Width	2.79 mm
Size-Height	2.29 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
