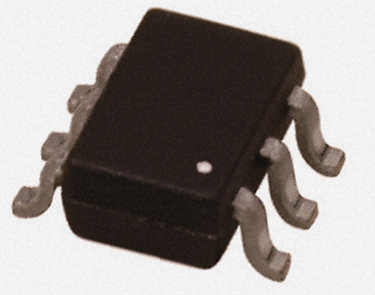

Image is for your reference only,please check specifications for details

SMS05CT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC14259500
Category:
TVS Diode
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SMS05CT1G TVS Diode, SMS05C Series, Unidirectional, 5V, 14.5V, TSOP, 6Pins
Stock Locations:
Availability:
1,470 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SMS05C series 5-line Transient Voltage Suppressor Array designed for application requiring transient voltage protection capability. It is intended for use in over-transient voltage and ESD sensitive equipment. It features a monolithic common anode design which protects five independent lines.
350W (8 x 20µs waveform) Peak power dissipation
ESD rating class 3B (Exceeding 8kV) per human body model
ESD Class C (exceeding 400V) per machine model
Compliance with IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact)
-40 to 150°C Operating junction temperature range

Show

SMS05CT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Voltage Rating (DC)	5.00 V
Operating Voltage	5 V
Capacitance	400 pF
Power Rating	350 W
Halogen Free Status	Halogen Free
Breakdown Voltage	6.2 V
Number of Circuits	5 Circuit
Number of Positions	6 Position
Power Dissipation	350 W
Clamping Voltage	14.5 V
Test Current	1 mA
Max Breakdown Voltage	7.2 V
Peak Pulse Power	350 W
Min Breakdown Voltage	6.2 V
Reverse Breakdown Voltage	6.2 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
