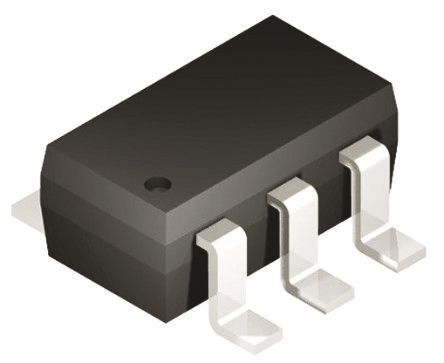

Image is for your reference only,please check specifications for details

SMS12T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC27518946
Category:
TVS Diode
Package:
SC-74-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SMS12T1G TVS Diode, SMS05C Series, Unidirectional, 12V, 23V, SC-74, 6Pins
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SMS05T1 series quad Transient Voltage Suppressor Diode designed for applications requiring transient overvoltage protection capability. It is intended for use in voltage and ESD sensitive equipment. The device provides superior surge protection over current quad Zener MMQA series by providing up to 350W peak power. It is available in 5, 12, 15 and 24V device marking levels.
350W (8 x 20µs waveform) Peak power dissipation
ESD rating class N (Exceeding 25kV) per the human body model
IEC 61000-4-2 (ESD) 15kV (air) 8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (lightning) 23A (8/20µs)
-55 to 150°C Junction temperature range

Show

SMS12T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74-6
Voltage Rating (DC)	12.0 V
Operating Voltage	12 V
Capacitance	150 pF
Power Rating	350 W
Halogen Free Status	Halogen Free
Breakdown Voltage	13.3 V
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	6 Position
Power Dissipation	225 mW
Clamping Voltage	23 V
Test Current	1 mA
Max Breakdown Voltage	15 V
Peak Pulse Power	350 W
Min Breakdown Voltage	13.3 V
Reverse Breakdown Voltage	13.3 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	225 mW
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	0.94 mm
Size-Thickness	1.10 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
