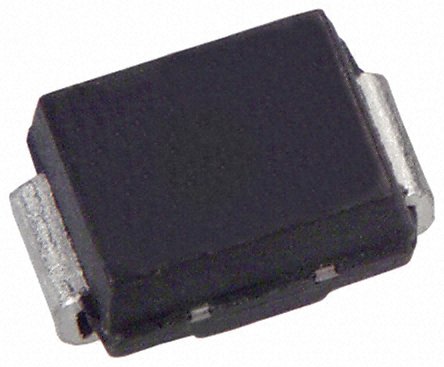

Image is for your reference only,please check specifications for details
- SMTPA200 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC19367329
-
Category:Thyristor
-
Package:DO-214AA
-
Datasheet:Datasheet 3D Model
-
Description:Thyristor Surge Protection Devices 200V 16A 2Pin DO-214AA T/R
-
Stock Locations:
-
Availability:291 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.3
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Take an extra step of protection from surges with this SMTPA200 SCR thyristor manufactured from STMicroelectronics. This device has a surge current rating of 16. This SCR thrysitor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its repetitive peak forward blocking voltage is 200 V, while its repetitive peak reverse voltage is 200 V.
SMTPA200 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AA |
| Voltage Rating (DC) | 200 V |
| Operating Voltage | 180 V |
| Capacitance | 25 pF |
| Breakdown Voltage | 200 V |
| Holding Current | 150 mA |
| Test Current | 5 µA |
| Peak Pulse Power | 600 W |
| Holding Current (Max) | 150mA (Min) |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 5.6 mm |
| Size-Width | 4.6 mm |
| Size-Height | 2.45 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
