Description

DESCRIPTION
The SN65LVDS104 and SN65LVDS105 are a differ ential line receiver and a LVTTL input (respectively)
connected to four differential line drivers that implement the electrical characteristics of low-voltage
differential signaling (LVDS). LVDS, as specified in EIA/TIA-644 is a data signaling technique that offers
low-power, low-noise coupling, and switching speeds to transmit data at relatively long distances. (Note:
The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the
media, the noise coupling to the environment, and other system characteristics.)
FEATURES
• Receiver and Drivers Meet or Exceed the Requirements of ANSI EIA/TIA-644 Standard
– SN65LVDS105 Receives Low-Voltage TTL (LVTTL) Levels
– SN65LVDS104 Receives Differential Input Levels, ±100 mV
• Typical Data Signaling Rates to 400 Mbps or Clock Frequencies to 400 MHz
• Operates From a Single 3.3-V Supply
• Low-Voltage Differential Signaling With Typical Output Voltage of 350 mV and a 100-Ω Load
• Propagation Delay Time
– SN65LVDS105 – 2.2 ns (Typ)
– SN65LVDS104 – 3.1 ns (Typ)
• LVTTL Levels Are 5-V Tolerant
• Electrically Compatible With LVDS, PECL, LVPECL, LVTTL, LVCMOS, GTL, BTL, CTT, SSTL, or HSTL Outputs With External Networks
• Driver Outputs Are High Impedance When Disabled or With VCC<1.5 V
• Bus-Pin ESD Protection Exceeds 16 kV
• SOIC and TSSOP Packaging

Show

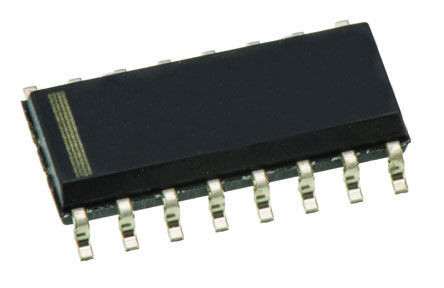

SN65LVDS105D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.30 V
Number of Outputs	4 Output
Supply Current	23 mA
Power Dissipation	950 mW
Data Rate	400 Mbps
Input Capacitance	3 pF
Output Current (Max)	10 mA
Input Current (Min)	20 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	950 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
