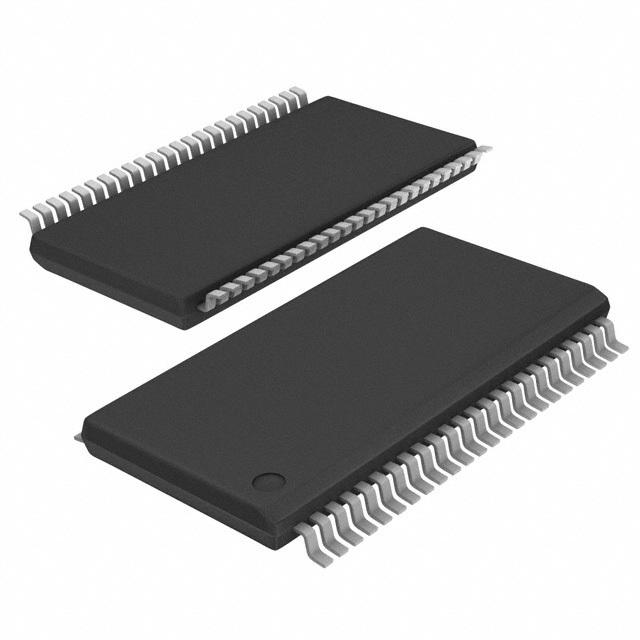

Image is for your reference only,please check specifications for details

SN74CBT16209ADGVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC56047430
Category:
Logic Controller, Logic IC
Package:
TVSOP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74CBT16209ADGVR Bus Exchange Switch, 18Channels, 64mA, 4V to 5.5V, TVSOP-48
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.82

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description/ordering information
The SN54CBT16209 and SN74CBT16209A devices provide 18 bits of high-speed TTL-compatible bus switching or exchanging. The low on-state resistance of the switches allows connections to be made with minimal propagation delay.
The devices operate as an 18-bit bus switch or a 9-bit bus exchanger, which provides data
exchanging between the four signal ports via the data-select (S0, S1, S2) terminals.
Members of the Texas Instruments Widebus Family
5-ΩSwitch Connection Between Two Ports
TTL-Compatible Input Levels

Show

SN74CBT16209ADGVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TVSOP-48
Supply Voltage (DC)	4.00V ~ 5.50V
Number of Outputs	18 Output
Output Current	64 mA
Number of Channels	18 Channel
Number of Bits	18 Bit
Propagation Delay Max (tpd)	250 ps
Polarity	Non-Inverting
Voltage Nodes	5.00 V
Bandwidth	200 MHz
Number of Inputs	18 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4 V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
