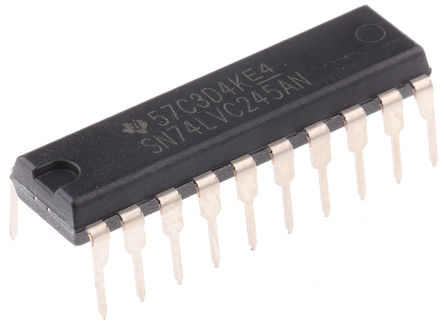

SN74LVC245AN - TI
Manufacturer:
TI
ManyChip's Part#:
MC14540051
Category:
Logic Controller, Logic IC
Package:
PDIP-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LVC245AN Transceiver, 74LVC245, 1.65V to 3.6V, DIP-20
Stock Locations:
Availability:
182 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.46

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LVC245AN is an Octal Bus Transceiver with 3-state outputs and LVC technology. Designed for VCC and catalogue operation. The LVC245A devices are designed for asynchronous communication between data buses.
TTL or CMOS input and LVTTL output
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

SN74LVC245AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	PDIP-20
Supply Voltage (DC)	2.00V ~ 3.60V
Number of Outputs	8 Output
Number of Circuits	8 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Propagation Delay Max (tpd)	6.50 ns
Voltage Nodes	3.30 V, 2.70 V, 2.50 V, 1.80 V
Output Current Drive	-1.00 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	24.33 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
