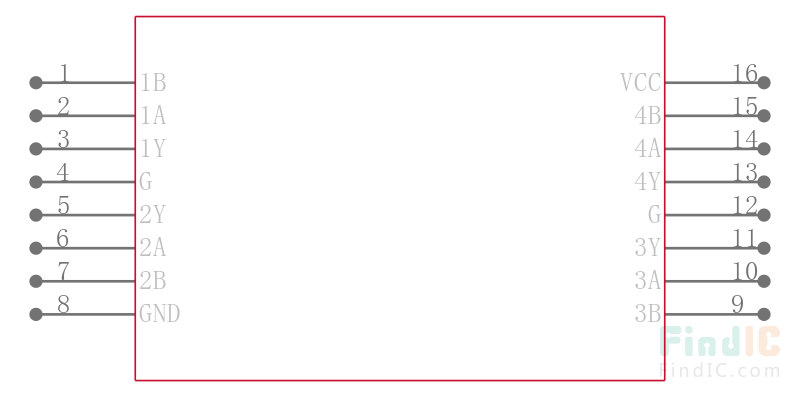

Image is for your reference only,please check specifications for details

SN75173 - TI
Manufacturer:
TI
ManyChip's Part#:
MC270143292
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Quadruple Differential Line Receiver
Stock Locations:
Availability:
213 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN55173, SN65173, and SN75173 are monolithic quadruple differential line receivers with 3-state outputs. They are designed to meet the requirements of TIA/EIA-422-B, TIA/EIA-423-B, TIA/EIA-485-A, and several ITU recommendations. The standards are for balanced multipoint bus transmission at rates up to 10 megabits per second. The four receivers share two OR enable inputs, one active when high, the other active when low. These devices feature high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range of \x9612 V to 12 V. Fail-safe design specifies that if the inputs are open circuited, the outputs are always high. The SN65173 and SN75173 are designed for optimum performance when used with the SN75172 or SN75174 quad differential line drivers.
The SN55173 is characterized over the full military temperature range of \x9655°C to 125°C. The SN65173 is characterized for operation from \x9640°C to 85°C. The SN75173 is characterized for operation from 0°C to 70°C.
Meet or Exceed the Requirements of TIA/EIA-422-B, TIA/EIA-423-B, and TIA/EIA-485-A and ITU Recommendations V.10, V.11, X.26, and X.27
Designed for Multipoint Bus Transmission on Long Bus Lines in Noisy Environments
3-State Outputs
Common-Mode Input Voltage Range of \x9612 V to 12 V
Input Sensitivity ... ±200 mV
Input Hysteresis . . . 50 mV Typ
High Input Impedance . . . 12 k Min
Operate From Single 5-V Supply
Low Power Requirements
Pin-to-Pin Replacement for AM26LS32
**THE SN55173 IS NOT RECOMMENDED FOR NEW DESIGNS.**

Show

SN75173 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	4
	Show
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
