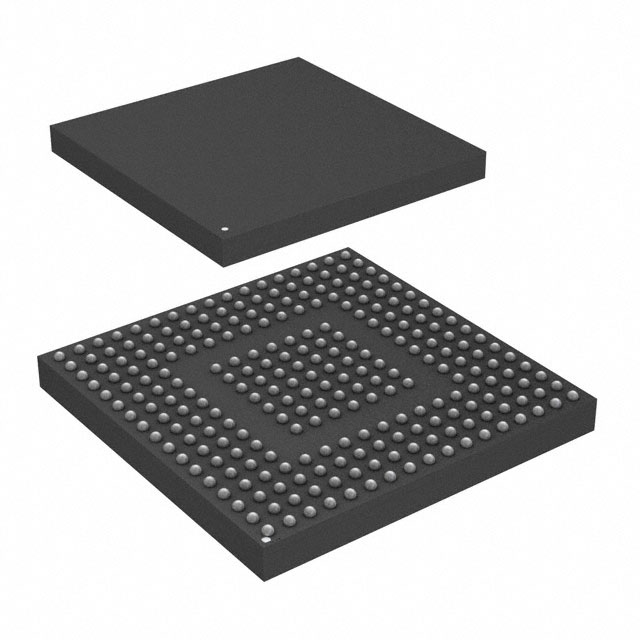

Image is for your reference only,please check specifications for details

SPC5744PGK1AMMM9 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC76523427
Category:
Microcontroller, MCU IC
Package:
MAPBGA-257
Datasheet:
Datasheet 3D Model
Description:
NXP SPC5744PGK1AMMM9 32Bit Microcontroller, Power Architecture, 200MHz, 2.5Mb, 384KB, 257Pins, MAPBGA New
Stock Locations:
Availability:
201 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 164.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SPC5744PGK1AMMM9 is a MPC574xP MCU family 32bit embedded power architecture in 257 pin MAPBGA package. It meets the highest functional safety standards for automotive and industrial functional safety applications. It features integrated safety architecture minimizes additional software and development, programmable fault collection and control unit (FCCU) monitors the integrity status of the device and provides flexible safe state control, end-to-end error correcting code (e2eECC) improves fault tolerance and detection part of the SafeAssure program helping manufacturers achieve functional safety standard compliance.
2 x e200z4 in delayed lock step
Flash memory size of 2.5MB, 384KB SRAM
Execution speed of 0MHz to 200MHz
32 interrupt priority levels, 16 software programmable interrupts
PIT, STM, SWT, eDMA, FlexRay, FlexCAN, LINFlexD
Low power modes of HALT and STOP
3.3V with external ballast transistor power supply
Operating temperature range from -40°C to +125°C

Show

SPC5744PGK1AMMM9 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	257 Pin
Case/Package	MAPBGA-257
Number of Positions	257 Position
Clock Speed	200 MHz
RAM Memory Size	384 KB
Number of Bits	32 Bit
Power Dissipation	1600 mW
FLASH Memory Size	2500 kB
Number of ADCs	4 ADC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3.15 V
	Show
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2016/06/20
