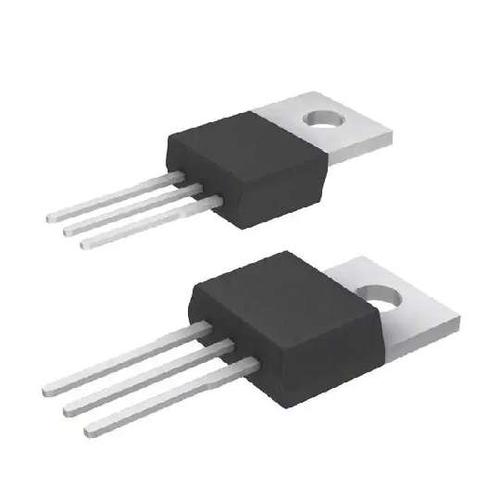

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

SPP11N60CFD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	650 V
Current Rating	11.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	440 mΩ
Polarity	N-Channel
Power Dissipation	125 W
Threshold Voltage	4 V
Input Capacitance	1.20 nF
Gate Charge	64.0 nC
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	11.0 A
Rise Time	18 ns
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	10 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
