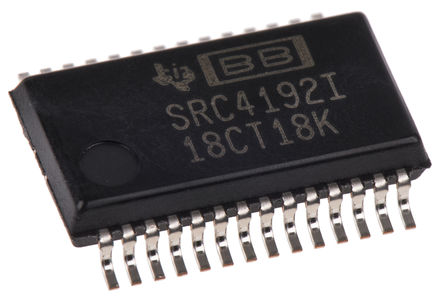

Image is for your reference only,please check specifications for details

SRC4192IDB - TI
Manufacturer:
TI
ManyChip's Part#:
MC22078428
Category:
Active Chip
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
Audio Control, Sample Rate Converter, 3V to 3.6V, I2S, TDM, SSOP, 28Pins, -40℃
Stock Locations:
Availability:
203 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SRC4192IDB is a stereo asynchronous Sample-Rate Converter combines a wide input-to-output sampling ratio with outstanding dynamic range and ultra-low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allows to connect to a wide range of audio data converters, digital audio receivers and transmitters and digital signal processors. The SRC4192 device is a standalone, pin-programmed device, with control pins for mode, data format, mute, bypass and low group-delay functions. It is a software-controlled device featuring a serial peripheral interface (SPI) port, which is utilized to program all functions through the internal control registers. It can operate from a single 3.3V power supply. A separate digital I/O supply (VIO) operates over the 1.65 to 3.6V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices.
Automatic sensing of the input-to-output sampling ratio
Attenuates sampling and reference clock jitter
Low group delay option for interpolation filter
Soft mute function
Bypass mode
Power down mode
TDM Mode allows daisy-chaining of up to eight devices
Green product and no Sb/Br

Show

SRC4192IDB Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Current	66 mA
Number of Channels	2 Channel
Number of Positions	28 Position
Number of Bits	24 Bit
Power Dissipation	225 mW
Bandwidth	106 kHz
Output Power	225 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.95 mm
Operating Temperature	-45℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
