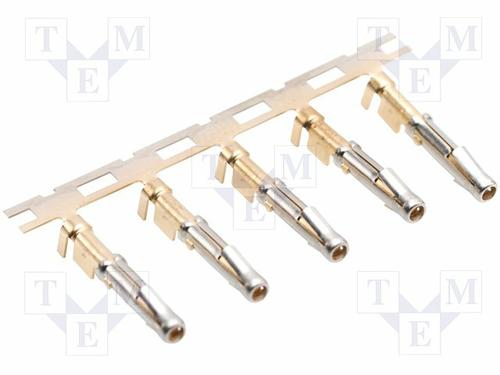

Image is for your reference only,please check specifications for details

SS16M1F - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC4757792
Category:
Connector Accessory
Package:
-
Datasheet:
Datasheet 3D Model
Description:
AMPHENOL SINE SYSTEMS SS16M1F Circular Connector Contact, RT360, Ecomate RM Series, Socket, Crimp, 16AWG, 18AWG
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Ecomate RM series standard rugged metal shielded Circular Connector is available in 7 shell sizes and multiple insert arrangements. The Ecomate® RM series is the connector of choice wherever there are demanding interconnect architectures. It is the high performance, effective solution of choice for our customers. The series includes two kinds of connector has high amperage. It is widely used, standardized connector, while the high amperage connector is designed to endure large currents and high voltage. Typically used within hybrid electric vehicles, high amperage connector is available in single-pole, high power arrangements featuring RADSOK® technology. It features IP67 environmental sealing qualities, rugged nickel plated aluminium outer shells and bayonet locking systems that require only a 1/3 turn. An audible locking click indicates proper installation. The High Amperage Ecomate® RM with RADSOK® technology is our single-pole power connector series ranging from 86 to 300A.
Allows machined, power and stamped and formed insert arrangement

Show

SS16M1F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Gender	Female
Wire Gauge	16AWG ~ 18AWG
Contact Plating	Gold
Current Rating	13 A
Current Rating (Max)	13 A
Voltage Rating	300 V
Maximum Contact Resistance (Max)	6 mΩ
	Show
Size-Height	3.7 mm
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
