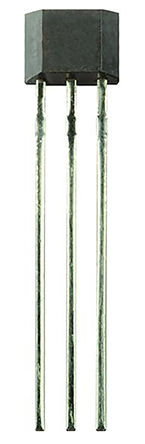

Image is for your reference only,please check specifications for details

SS460S - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC4278230
Category:
Hall Effect Sensor
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
Hall Effect Sensor 20mA Bipolar Latch 3.3V/5V/9V/12V/15V/18V 3Pin TO-92 Bag
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS460S is a high-sensitivity bipolar latching digital hall-effect Sensor IC, small, sensitive and versatile devices that are operated by the magnetic field from a permanent magnet or an electromagnet. This is designed to respond to alternating North and South poles. The SS360NT is turned ON by a North pole while the SS360ST and SS460S are turned ON by a South pole. The high-sensitivity bipolar latching digital hall-effect sensor IC offers reliable switching points with a high magnetic sensitivity of 30G typical (55G maximum). This sensor IC does not use chopper stabilization on the Hall element, providing a clean output signal and a faster latch response time when compared to competitive high sensitivity Hall-effect bipolar latching sensor ICs which do use chopper stabilization.
Fastest response time in its class, provides more efficiency in commutating a brushless DC motor
No chopper stabilization, results in a clean output signal
High sensitivity
Bipolar latching magnetic
Wide operating voltage range, allows for potential use in a wide range of applications
Built-in reverse voltage, enhances the protection of the sensor and the circuits
Durable design, allows operation up to 150°C (302°F)
ESD sensitive device, take proper precaution while handling the device.

Show

SS460S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	3.00V (min)
Output Current	20 mA
Supply Current	3.5 mA
Number of Positions	3 Position
Output Current (Max)	20 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 24V
Supply Voltage (Max)	24 V
Supply Voltage (Min)	3 V
	Show
Size-Height	3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8542390000
ECCN Code	EAR99
