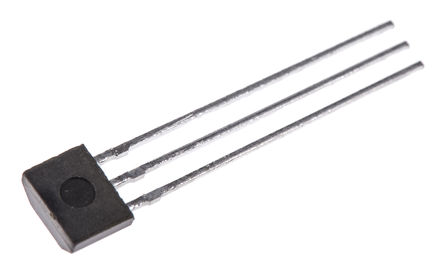

Image is for your reference only,please check specifications for details

SS466A - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC2073061
Category:
Hall Effect Sensor
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
Board Mount Hall Effect / Magnetic Sensors 20mA Latch 5V/9V/ 12V/15V/18V/24V 3Pin
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SS466A is a temperature compensated Digital Hall-effect Sensor IC designed to respond to alternating North and South poles or to a South-pole only. This is a small, versatile, digital hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. Band gap regulation provides stable operation over 3.8 to 30VDC supply voltage range. This sensor is capable of continuous 20mA sinking output and may be cycled as high as 50mA maximum. Its 3.8V capability allows for use in many potential low voltage applications. The digital, open collector sinking-type output is easily interfaced with a wide variety of electronic circuits.
Quad-hall IC design minimizes mechanical stress effects
Digital, open collector sinking output for easy interfacing

Show

SS466A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Number of Contacts	3 Contact
Supply Voltage (DC)	24.0 V
Current Rating	7.50 mA
Output Current	20 mA
Supply Current	10 mA
Number of Positions	3 Position
Switching Current	20 mA
Output Current (Max)	20 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.8V ~ 30V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	3.8 V
	Show
Size-Length	4.06 mm
Size-Width	3 mm
Size-Height	3 mm
Size-Thickness	1.50 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
HTS Code	8542390000
ECCN Code	EAR99
