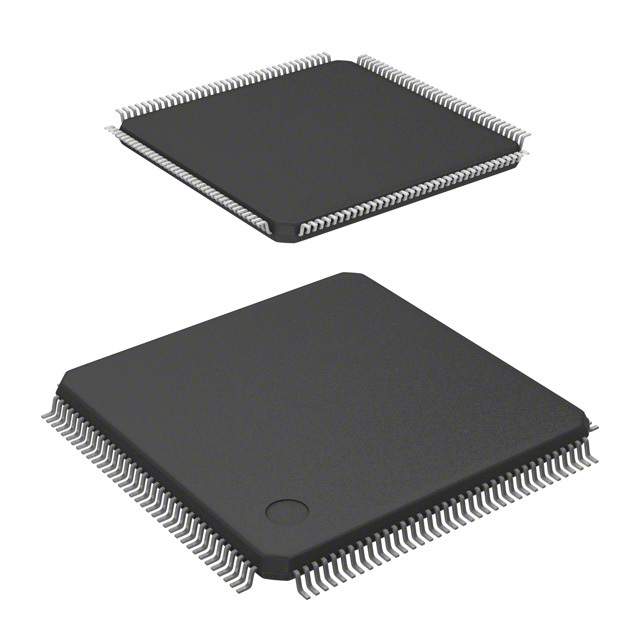

Image is for your reference only,please check specifications for details
- ST10F276Z5T3 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC51909440
-
Category:Microcontroller, MCU IC
-
Package:LQFP-144
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit ST10 CISC/RISC 512KB Flash 5V 144Pin LQFP Tray
-
Stock Locations:
-
Availability:269 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 20.38
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Introduction
- The ST10F276 is a derivative of the STMicroelectronics ST10 family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance (up to 32 million instructions per second) with high peripheral functionality and enhanced I/O-capabilities. It also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock
- generation via PLL.
- Features
- ■ Highly performant 16-bit CPU with DSP functions
- – 31.25ns instruction cycle time at 64MHz max CPU clock
- – Multiply/accumulate unit (MAC) 16 x 16-bit multiplication, 40-bit accumulator
- – Enhanced boolean bit manipulations
- – Single-cycle context switching support
- ■ On-chip memories
- – 512 Kbyte Flash memory (32-bit fetch)
- – 320 Kbyte extension Flash memory (16-bit fetch)
- – Single voltage Flash memories with erase/program controller and 100K erasing/programming cycles.
- – Up to 16 Mbyte linear address space for code and data (5 Mbytes with CAN or I2C)
- – 2 Kbyte internal RAM (IRAM)
- – 66 Kbyte extension RAM (XRAM)
- ■ External bus
- – Programmable external bus configuration & characteristics for different address ranges
- – Five programmable chip-select signals
- – Hold-acknowledge bus arbitration support
- ■ Interrupt
- – 8-channel peripheral event controller for single cycle interrupt driven data transfer
- – 16-priority-level interrupt system with 56 sources, sampling rate down to 15.6ns
- ■ Timers
- – Two multi-functional general purpose timer units with 5 timers
- ■ Two 16-channel capture / compare units
- ■ 4-channel PWM unit + 4-channel XPWM
- ■ A/D converter
- – 24-channel 10-bit
- –3µs minimum conversion time
- ■ Serial channels
- – Two synch. / asynch. serial channels
- – Two high-speed synchronous channels
- –One I2C standard interface
- ■ 2 CAN 2.0B interfaces operating on 1 or 2 CAN busses (64 or 2x32 message, C-CAN version)
- ■ Fail-safe protection
- – Programmable watchdog timer
- – Oscillator watchdog
- ■ On-chip bootstrap loader
- ■ Clock generation
- – On-chip PLL with 4 to 12 MHz oscillator
- – Direct or prescaled clock input
- ■ Real time clock and 32kHz on-chip oscillator
- ■ Up to 111 general purpose I/O lines
- – Individually programmable as input, output or special function
- – Programmable threshold (hysteresis)
- ■ Idle, power down and stand-by modes
- ■ Single voltage supply: 5V ±10% (embedded regulator for 1.8 V core supply)
ST10F276Z5T3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | LQFP-144 |
| Frequency | 40 MHz |
| RAM Memory Size | 68 KB |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 512 KB |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 20 mm |
| Size-Width | 20 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 3A991A2 |
