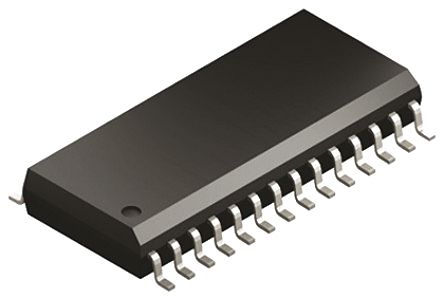

Image is for your reference only,please check specifications for details
- ST72F264G2M6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC42797200
-
Category:Microcontroller, MCU IC
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:STMICROELECTRONICS ST72F264G2M6 8Bit Microcontroller, Single Voltage Flash, ST72x, 8MHz, 8KB, 256Byte, 28Pins, SOIC
-
Stock Locations:
-
Availability:483 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.69
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ST72F264G2M6 is a 8-bit Microcontroller designed for mid-range applications with ADC, I²C and SCI interface capabilities. All devices are based on a common industry standard 8-bit core, featuring an enhanced instruction set. The device feature single-voltage FLASH memory with byte-by byte In-circuit programming (ICP) capabilities. Under software control, all devices can be placed in WAIT, SLOW, Active-HALT or HALT mode, reducing power consumption when the application is in idle or stand-by state. The enhanced instruction set and addressing modes of the ST7 offer both power and flexibility to software developers, enabling the design of highly efficient and compact application code. In addition to standard 8-bit data management, all ST7 microcontrollers feature true -bit manipulation, 8x8 unsigned multiplication and indirect addressing modes. For easy reference, all parametric data is located.
- Enhanced reset system
- Enhanced low voltage supply supervisor (LVD)
- Crystal/Ceramic resonator oscillators, internal RC oscillator and bypass for external clock
- PLL for 2x frequency multiplication
- Clock-out capability
- 4 Power saving modes - halt, active Halt, wait and slow
- Nested interrupt controller
- 10 Interrupt vectors plus TRAP and RESET
- 22 External interrupt lines (on 2 vectors)
- 22 Multifunctional bidirectional I/O lines
- 20 Alternate function lines
- 8 High sink outputs
- Main clock controller with real-time base and clock-out capabilities
- Configurable watchdog timer
- SPI synchronous serial interface
- I²C Multimaster Interface (SMBus V1.1 Com- pliant)
- SCI asynchronous serial interface
- 10-bit ADC with 6 input channels
- 8-bit Data manipulation
- 63 Basic instructions with illegal opcode detection
ST72F264G2M6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Frequency | 16 MHz |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Number of Positions | 28 Position |
| Clock Speed | 8.00 MHz |
| RAM Memory Size | 256 b |
| Number of Bits | 8 Bit |
| Power Dissipation | 500 mW |
| FLASH Memory Size | 8 KB |
| Number of I/O Pins | 22 IO |
| Access Time | 8.00 µs |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 22 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 18.1 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
