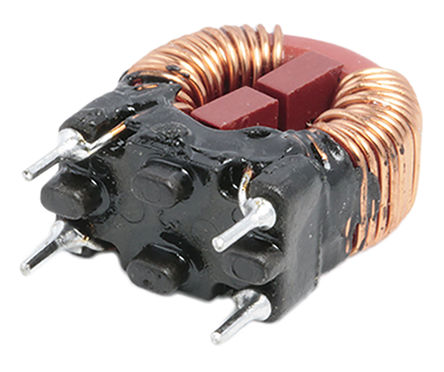

Image is for your reference only,please check specifications for details

744821201 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC51544000
Category:
Inductor Choke
Package:
Vertical, 4 PC Pin
Datasheet:
Datasheet 3D Model
Description:
Wurth 2 x 1mH ±30% Ferrite Common Mode Choke, 2A Idc, 2 x 45mΩ Rdc WE-CMB
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 744821201 is a 2A common mode Power Line Choke with broadband screening. The WE-CMB series choke has high interference compression asymmetric interference rate.
Very compact design
Highest possible current with small sizes
-40 to 125°C Operating temperature range

Show

744821201 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Vertical, 4 PC Pin
Voltage Rating (AC)	250 V
Current Rating	2 A
Capacitance Tolerance	±30 %
Inductance	1 mH
Resistance	45.0 mΩ
Inductance Tolerance	±30 %
Test Frequency	10 kHz
DC Resistance (DCR)	≤45.00 mΩ
Current Rating (Max)	2 A
Current Rating (DC)	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	45 mΩ
	Show
Size-Length	15 mm
Size-Width	7.5 mm
Size-Height	18 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
