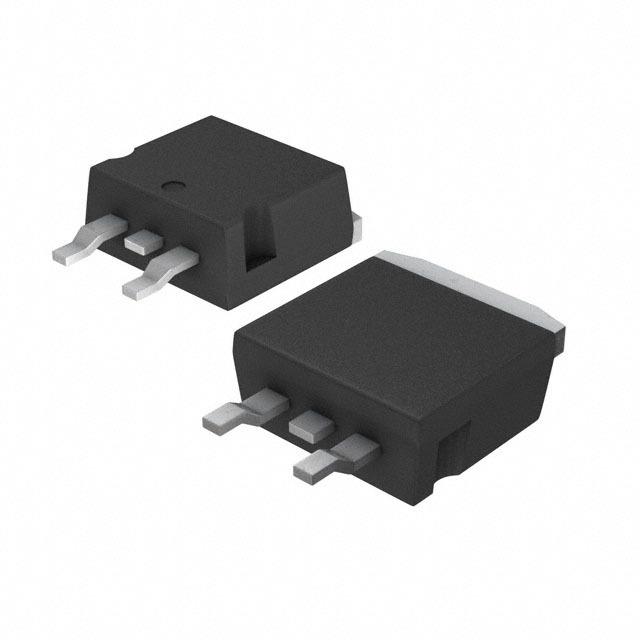

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STB46N30M5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Polarity	N-CH
Power Dissipation	250 W
Drain to Source Voltage (Vds)	300 V
Continuous Drain Current (Ids)	53A
Rise Time	15 ns
Input Capacitance (Ciss)	4240pF @100V(Vds)
Fall Time	24 ns
Power Dissipation (Max)	250W (Tc)
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99
