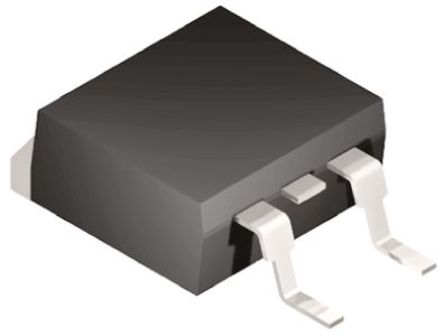

STB75NF75LT4 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9502989
Category:
MOSFET, MOSFET Transistor
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STB75NF75LT4 MOSFET Transistor, N Channel, 37.5A, 75V, 0.009Ω, 15V, 2.5V
Stock Locations:
Availability:
209 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STB75NF75LT4 is a STripFET™ II N-channel Power MOSFET specifically designed to minimize input capacitance and gate charge. It is suitable as primary switch in advanced high-efficiency, high-frequency isolated DC-to-DC converters for telecom and computer applications. It is also intended for any applications with low gate drive requirements.
Exceptional dV/dt capability
100% Avalanche tested
Low threshold drive
-55 to 175°C Operating junction temperature

Show

STB75NF75LT4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	75.0 V
Current Rating	75.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.009 Ω
Polarity	N-Channel
Power Dissipation	300 W
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	75 V
Breakdown Voltage (Drain to Source)	75.0 V
Breakdown Voltage (Gate to Source)	±15.0 V
Continuous Drain Current (Ids)	75.0 A
Rise Time	155 ns
Input Capacitance (Ciss)	4300pF @25V(Vds)
Input Power (Max)	300 W
Fall Time	60 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	9.35 mm
Size-Height	4.6 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
