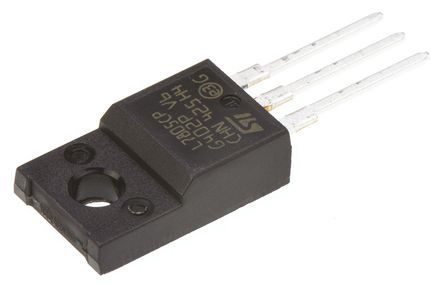

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STF100N6F7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0046 Ω
Power Dissipation	25 W
Threshold Voltage	4 V
Input Capacitance	1980 pF
Drain to Source Voltage (Vds)	60 V
Rise Time	55.5 ns
Input Capacitance (Ciss)	1980pF @25V(Vds)
Fall Time	15 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	25W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
