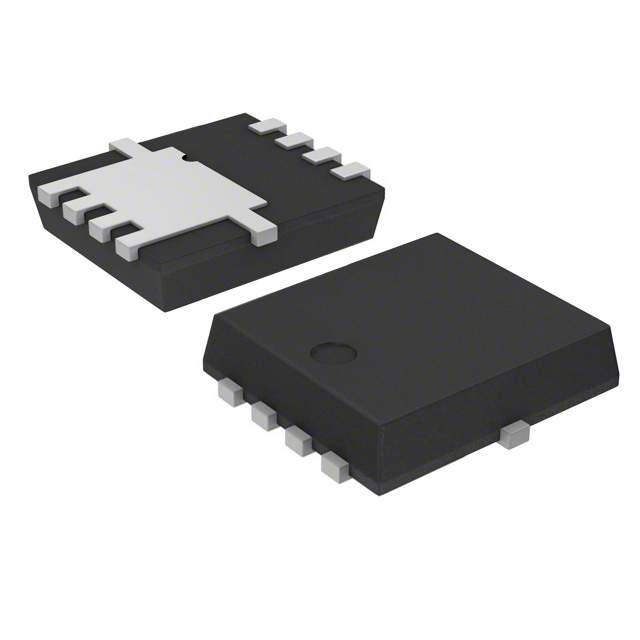

STL120N4F6AG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerFLAT-5x6-8
Polarity	N-CH
Power Dissipation	115 W
Drain to Source Voltage (Vds)	40 V
Continuous Drain Current (Ids)	120A
Rise Time	70 ns
Input Capacitance (Ciss)	3700pF @25V(Vds)
Fall Time	20 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	96W (Tc)
	Show
Size-Height	0.95 mm
Material	Silicon
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
