Description

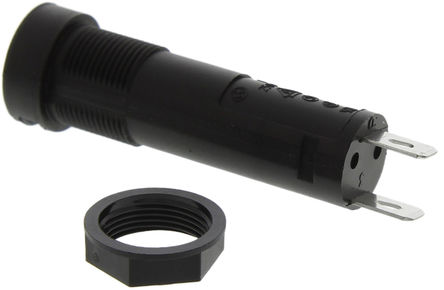

The 80000000005 is a 16A/250V/2.5W enclosed Bayonet Fuse Holder with thermoplastic construction, tinned solder or quick connect terminals and copper alloy corrosion protected metal. This 800-series panel mount fuse holder is compatible with 5 x 20mm and 6.3 x 32mm fuses.
Black colour
12.7mm Diameter D-hole or double D-hole
Fits 0.5mm tab
2.5mm² Minimum cross section conductor
1.2Nm Admissible torque on plastic hex nut mounting
>1.5kV Dielectric strength
IP40 Protection rating
-25 to 70°C Operating temperature range
UL94V-0 Flammability rating

Show

80000000005 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Quick Connect, Panel
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	6.3 A
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Power Dissipation	2.50 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	250 V
	Show
Size-Length	45.7 mm
Size-Height	15 mm
Size-Diameter	15.0 mm
Color	Black
Contact Material	Copper Alloy
Material	Thermoplastic
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
