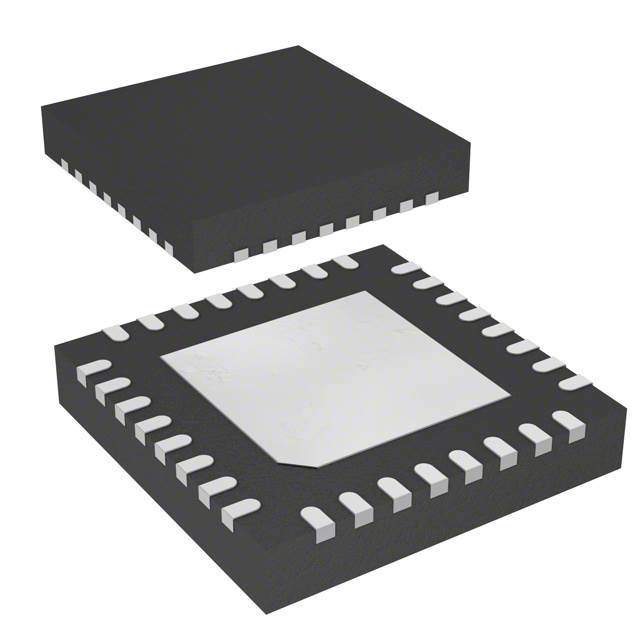

Image is for your reference only,please check specifications for details
- STM32F042K6U6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC8105854
-
Category:Microcontroller, MCU IC
-
Package:UFQFN-32
-
Datasheet:Datasheet 3D Model
-
Description:ARM Microcontroller, USB Line, STM32 F0 ARM Cortex-M0 Microcontrollers, 32Bit, 48MHz, 32KB, 6KB
-
Stock Locations:
-
Availability:291 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.69
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The STM32F042K6U6 is an entry level STM32 F0 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M0 RISC core operating at a 48MHz frequency, high speed embedded memories (Flash memory up to 32kB and SRAM up to 6KB) and an extensive range of enhanced peripherals and I/Os. This device offer standard communication interfaces (one I²C, one SPI, one I²S, one HDMI CEC and two USARTs), one USB full-speed device (crystal-less), one CAN, one 12-bit ADC, four 16-bit timers, one 32-bit timer and an advanced control PWM timer.
- CRC calculation unit
- Power-on/Power-down reset (POR/PDR)
- Programmable voltage detector (PVD)
- Low-power modes - Sleep, stop, standby
- VBAT supply for RTC and backup registers
- 4 to 32MHz Crystal oscillator
- 32kHz Oscillator for RTC with calibration
- Internal 8MHz RC with x6 PLL option
- Internal 40kHz RC oscillator
- Internal 48MHz Oscillator with automatic trimming
- 5-channel DMA Controller
- Up to 14 capacitive sensing channels
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Independent and system watchdog timers
- SysTick Timer
- CAN interface
- USB 2.0 full speed interface
- HDMI CEC, wakeup on header reception
- Serial wire debug (SWD)
- 96-bit Unique ID
STM32F042K6U6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | UFQFN-32 |
| Frequency | 48 MHz |
| Operating Voltage | 1.65V ~ 3.6V |
| Number of Positions | 32 Position |
| Clock Speed | 48 MHz |
| RAM Memory Size | 6 KB |
| Number of Bits | 32 Bit |
| Power Dissipation | 526 mW |
| Number of Inputs and Outputs | 28 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 526 mW |
| Supply Voltage | 2.3.6 VDC |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 3A991A2 |
