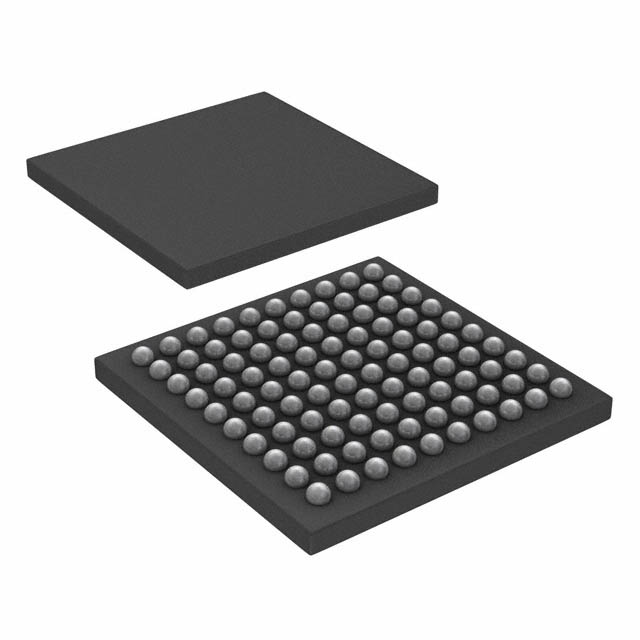

Image is for your reference only,please check specifications for details

STM32L496VGY6TR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC75981396
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit ARM Cortex M4 RISC 1Mb Flash 3.3V 100Pin WLCSP T/R
Stock Locations:
Availability:
3,735 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 65.47

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32L496xx devices are the ultra-low-power microcontrollers based on the high-performance ARM® Cortex®-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32L496xx devices embed high-speed memories (up to 1 Mbyte of Flash memory, 320 Kbyte of SRAM), a flexible external memory controller (FSMC) for static memories (for devices with packages of 100 pins and more), a Quad SPI flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
The STM32L496xx devices embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, proprietary code readout protection and Firewall.
The devices offer up to three fast 12-bit ADCs (5 Msps), two comparators, two operational amplifiers, twoDAC channels, an internal voltage reference buffer, a low-power RTC, two general-purpose 32-bit timer, two 16-bit PWM timers dedicated to motor control, seven general-purpose 16-bit timers, and two 16-bit low-power timers. The devices support four digital filters for external sigma delta modulators (DFSDM).
In addition, up to 24 capacitive sensing channels are available. The devices also embed an integrated LCD driver 8x40 or 4x44, with internal step-up converter.
They also feature standard and advanced communication interfaces.
The STM32L496xx operates in the -40 to +85 °C (+105 °C junction), -40 to +125 °C (+130 °C junction) temperature ranges from a 1.71 to 3.6 V VDD power supply when using internal LDO regulator and a 1.05 to 1.32V VDD12 power supply when using external SMPS supply. A comprehensive set of power-saving modes allows the design of low-power applications.
Some independent power supplies are supported: analog independent supply input for ADC, DAC, OPAMPs and comparators, 3.3 V dedicated supply input for USB and up to 14 I/Os can be supplied independently down to 1.08V. A VBAT input allows to backup the RTC and backup registers. Dedicated VDD12 power supplies can be used to bypass the internal LDO regulator when connected to an external SMPS.
The STM32L496xx family offers six packages from 64-pin to 169-pin packages.
**Key Features**
Ultra-low-power with FlexPowerControl
1.71 V to 3.6 V power supply
-40 °C to 85/125 °C temperature range
320 nA in VBAT mode: supply for RTC and 32x32-bit backup registers
25 nA Shutdown mode (5 wakeup pins)
108 nA Standby mode (5 wakeup pins)
426 nA Standby mode with RTC
2.57 μA Stop 2 mode, 2.86 μA Stop 2 with RTC
91 μA/MHz run mode (LDO Mode)
37 μA/MHz run mode (@3.3 V SMPS Mode)
Batch acquisition mode (BAM)
5 μs wakeup from Stop mode
Brown out reset (BOR) in all modes except shutdown
Interconnect matrix
Core: ARM® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait-state execution from Flash memory, frequency up to 80 MHz, MPU, 100 DMIPS and DSP instructions
Performance benchmark
1.25 DMIPS/MHz (Drystone 2.1)
273.55 Coremark® (3.42 Coremark/MHz @ 80 MHz)
Energy benchmark
217 ULPBENCH™ score
16 x timers: 2 x 16-bit advanced motor-control, 2 x 32-bit and 5 x 16-bit general purpose, 2 x 16-bit basic, 2 x low-power 16-bit timers (available in Stop mode), 2 x watchdogs, SysTick timer
RTC with HW calendar, alarms and calibration
Up to 136 fast I/Os, most 5 V-tolerant, up to 14 I/Os with independent supply down to 1.08 V
Dedicated Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
8- to 14-bit camera interface up to 32 MHz (black&white) or 10 MHz (color)
Memories
Up to 1 MB Flash, 2 banks read-while-write, proprietary code readout protection
320 KB of SRAM including 64 KB with hardware parity check
External memory interface for static memories supporting SRAM, PSRAM, NOR and NAND memories
Dual-flash Quad SPI memory interface
Clock Sources
4 to 48 MHz crystal oscillator
32 kHz crystal oscillator for RTC (LSE)
Internal 16 MHz factory-trimmed RC (±1%)
Internal low-power 32 kHz RC (±5%)
Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25% accuracy)
Internal 48 MHz with clock recovery
3 PLLs for system clock, USB, audio, ADC
LCD 8 × 40 or 4 × 44 with step-up converter
Up to 24 capacitive sensing channels: support touchkey, linear and rotary touch sensors
4 x digital filters for sigma delta modulator
Rich analog peripherals (independent supply)
3 × 12-bit ADC 5 Msps, up to 16-bit with hardware oversampling, 200 μA/Msps
2 x 12-bit DAC, low-power sample and hold
2 x operational amplifiers with built-in PGA
2 x ultra-low-power comparators
20 x communication interfaces
USB OTG 2.0 full-speed, LPM and BCD
2 x SAIs (serial audio interface)
4 x I2C FM+(1 Mbit/s), SMBus/PMBus
5 x U(S)ARTs (ISO 7816, LIN, IrDA, modem)
1 x LPUART
3 x SPIs (4 x SPIs with the Quad SPI)
2 x CAN (2.0B Active) and SDMMC
SWPMI single wire protocol master I/F
IRTIM (Infrared interface)
14-channel DMA controller
True random number generator
CRC calculation unit, 96-bit unique ID
Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell™

Show

STM32L496VGY6TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	100 Pin
Case/Package	CSP-100
Number of Positions	100 Position
RAM Memory Size	320 KB
Number of Bits	32 Bit
Power Dissipation	559 mW
Number of ADCs	3 ADC
Number of Inputs and Outputs	83 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	559 mW
Number of DACs	1 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.71 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	3A991A2
