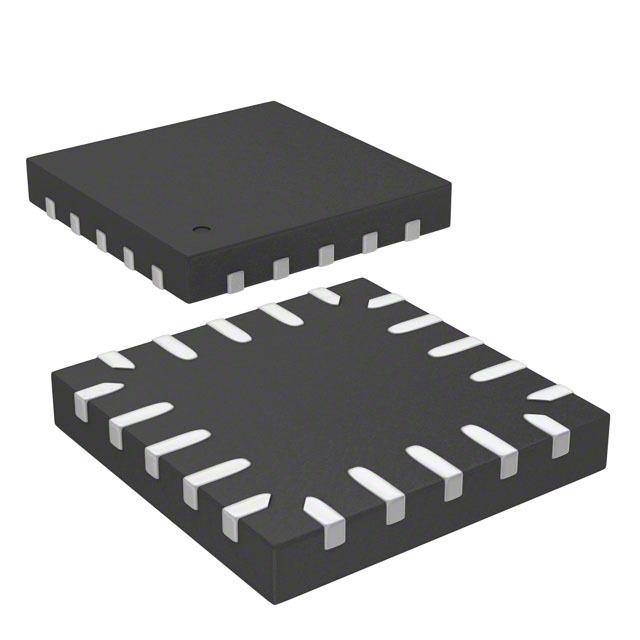

Image is for your reference only,please check specifications for details

STM8S103F3U6TR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC26512900
Category:
Microcontroller, MCU IC
Package:
UFQFN-20
Datasheet:
Datasheet 3D Model
Description:
MCU 8Bit STM8 CISC 8KB Flash 3.3V/5V 20Pin UFQFPN EP T/R
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.54

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The STM8S103/105 access line 8-bit microcontrollers offer from 8 Kbytes up to 32 Kbytes of program memory.
All devices of the STM8S103/105 access line provide the following benefits:
● Reduced system cost
– High system integration level with internal clock oscillators, watchdog and brown out reset
● Performance and robustness
– 16 MHz CPU clock frequency
– Robust I/O, independent watchdogs with separate clock source
– Clock security system
● Short development cycles
– Applications scalability across a common family product architecture with compatible pinout, memory map and and modular peripherals.
– Full documentation and a wide choice of development tools
● Product longevity
– Advanced core and peripherals made in a state-of-the art technology
– A family of products for applications with 3.0 V to 5.5 V operating supply
Features
Core
■ Max fCPU: up to 16 MHz
■ Advanced STM8 core with Harvard architecture and 3-stage pipeline
■ Extended instruction set
Memories
■ Program memory: Up to 32 Kbytes Flash; data retention 20 years at 85°C after 1 kcycles
■ RAM: Up to 2 Kbytes
Clock, reset and supply management
■ 3.0 to 5.5 V operating voltage
■ Flexible clock control, 4 master clock sources:
– Low power crystal resonator oscillator
– External clock input
– Internal 16 MHz RC
– Internal low power 128 kHz RC
■ Clock security system with clock monitor
■ Power management:
– Low power modes (Wait, Active-halt, Halt)
– Switch-off peripheral clocks individually
■ Permanently active, low consumption power on and power-down reset
Interrupt management
■ Nested interrupt controller with 32 interrupts
■ Up to 37 external interrupts on 6 vectors
Timers
■ 2x 16-bit general purpose timers, with 2+3 CAPCOM channels (IC, OC or PWM)
■ Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
■ 8-bit basic timer with 8-bit prescaler
■ Auto wake-up timer
■ 2 watchdog timers: Window watchdog and independent watchdog
Communications interfaces
■ USART or LINUART with clock output for synchronous operation, smartcard mode, IrDA mode, LIN master mode
■ SPI synchronous serial interface up to 8 Mbit/s
■ I2C interface up to 400 Kbit/s
Analog to digital converter (ADC)
■ 10-bit, ±1 LSB ADC with up to 10 multiplexed channels, scan mode and analog watchdog
I/Os
■ Up to 38 I/Os on a 48-pin package including 9 high sink outputs
■ Highly robust I/O design, immune against current injection

Show

STM8S103F3U6TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	20 Pin
Case/Package	UFQFN-20
Frequency	16 MHz
Number of Positions	20 Position
RAM Memory Size	1 KB
Power Dissipation	220 mW
Number of ADCs	1 ADC
Number of Inputs and Outputs	16 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	220 mW
Supply Voltage	2.95V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.95 V
	Show
Size-Height	0.53 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
