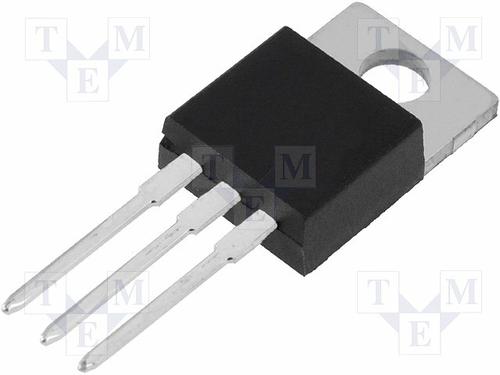

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STP20NE06L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	60.0 V
Current Rating	20.0 A
Power Rating	70 W
Polarity	N-CH
Power Dissipation	70 W
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	20.0 A
Rise Time	45 ns
Input Capacitance (Ciss)	800pF @25V(Vds)
Input Power (Max)	70 W
Fall Time	25 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	70W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
