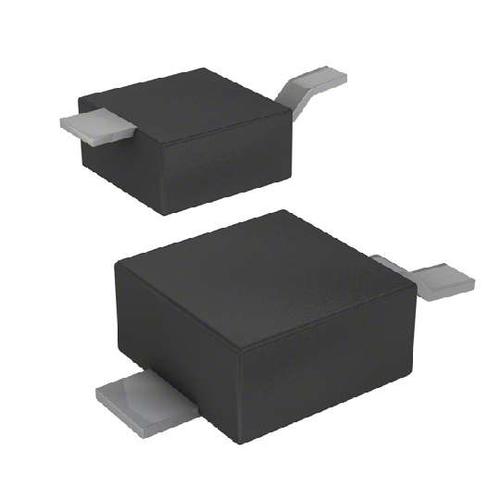

STPS120M - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC10611729
Category:
Schottky Diode
Package:
DO-216AA
Datasheet:
Datasheet 3D Model
Description:
STPS120 Series Single Power 1A 0.44V Schottky Rectifier SMT - DO-216AA
Stock Locations:
Availability:
9,820 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

•Very small conduction losses •Negligible switching losses •Extremely fast switching •Low forward voltage drop for higher efficiency •extended battery life •Low thermal resistance

Show

STPS120M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Voltage Rating (DC)	20.0 V
Current Rating	1.00 A
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	490mV @1A
Polarity	Standard
Thermal Resistance	250℃/W (RθJL)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	490mV @1A
Forward Current (Max)	1000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	1.9 mm
Size-Width	1.9 mm
Size-Height	1 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
