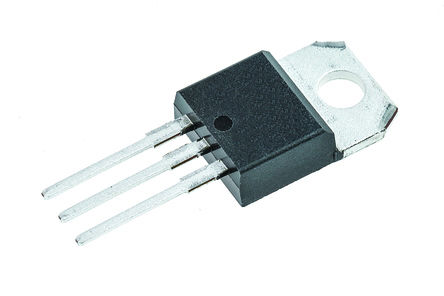

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STPS30100ST is a single Schottky Power Rectifier suitable for high frequency switch mode power supply. This device is intended to be used in applications where a good efficiency at both low and high load is required.
Avalanche rated
Low VF
Good trade-off between leakage current and forward-voltage drop
High frequency operation
Avalanche capability specified

Show

STPS30100ST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Forward Voltage	800mV @30A
Thermal Resistance	1 ℃/W
Forward Current	30 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	30 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	8.9 mm
Size-Height	4.6 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
