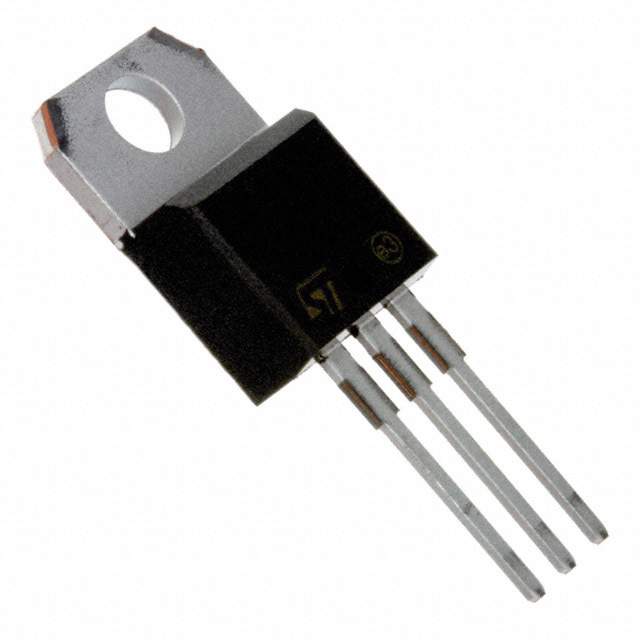

Image is for your reference only,please check specifications for details

STPSC10TH13TI - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC45836330
Category:
Schottky Diode
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STPSC10TH13TI Silicon Carbide Schottky Diode, SIC, 650V Series, Dual Series, 650V, 10A, 28.5NC, TO-220AB
Stock Locations:
Availability:
572 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.63

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 650 V rating. Due to the Schottky construction, no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature.
Especially suited for use in specific bridge-less topologies, this dual 650 V rectifier will boost the performance in hard switching conditions. Its high forward surge capability ensures a good robustness during transient phases.
**Key Features**
No or negligible reverse recovery
Switching behavior independent of temperature
Suited for specific bridge-less topologies
High forward surge capability
Insulated package:
Capacitance: 7 pF
Insulated voltage: 2500 V rms

Show

STPSC10TH13TI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Forward Voltage	1.75V @10A
Reverse recovery time	0 ns
Forward Current	10 A
Max Forward Surge Current (Ifsm)	470 A
Maximum Forward Voltage (Max)	1.75V @10A
Forward Current (Max)	10 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	150℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
